What air-cooled means on a piston compressor
Air-cooled describes how the machine gets rid of heat. It is not a size, a pressure rating or a duty class. Air-cooled piston compressors range from small single-stage units on a tank to large two-stage industrial machines, oil-lubricated or oil-free, driven by electric motors, engines or a tractor’s power take-off.

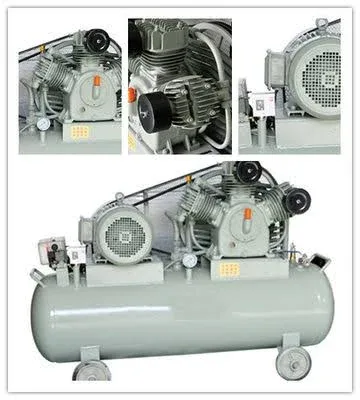

Representative images of machine types we sell, service and rent. Models and capacities are confirmed against your duty.
The design is simple. The cylinders and heads carry deep cast fins that increase the surface area exposed to air. In two-stage machines, air leaving the low-pressure cylinder passes through a finned intercooler before entering the high-pressure cylinder. Many machines also have a finned aftercooler on the discharge. A fan, usually formed by the spokes of the flywheel or mounted on the flywheel, blows ambient air across the fins and coolers.
The alternative is water cooling, where jackets around the cylinders and shell-and-tube coolers carry heat away in water. Water cooling handles larger heat loads and continuous duty in large machines, but needs a cooling-water system, water treatment and freezing and leak protection.
Why heat is the central design question
Compressing air raises its temperature. Almost all of the electrical energy put into a compressor ends up as heat, which must leave through the cylinder fins, the coolers, the lubricating oil and the compressed air itself. If heat cannot leave fast enough, temperatures climb.
High temperature causes most of the classic piston compressor problems:
- Lubricating oil thins and breaks down, forming carbon on valves and in discharge passages.
- Valve plates and springs fatigue faster; carbon holds valves open and causes leakage.
- Piston rings and cylinder walls wear faster.
- Hotter air carries more water vapour to the receiver and downstream equipment.
- In extreme cases, carbon deposits in discharge lines can ignite.
That is why the question for an air-cooled machine is not only “can it make the air?” but “for how long can it make that air under our site conditions?”
Single-stage and two-stage air-cooled machines
| Feature | Single-stage air-cooled | Two-stage air-cooled |
|---|---|---|
| Typical working pressure | Up to about 7–8 bar (101.5–116 psig) | Typically 8–12 bar (116–174 psig); higher-pressure designs exist |
| Cooling path | Finned cylinder and head, optional aftercooler | Finned cylinders, intercooler between stages, aftercooler |
| Discharge temperature | Higher, because all compression happens in one step | Lower per stage thanks to intercooling |
| Energy use | Acceptable for small, intermittent duties | Generally better per unit of air at higher pressure |
| Typical uses | Garages, tyre shops, small workshops | Factories, body shops, workshops with steadier demand |
The pressure figures are typical ranges. Each model’s maximum pressure and duty limits come from its manufacturer.
Across brands
Models we supply and service

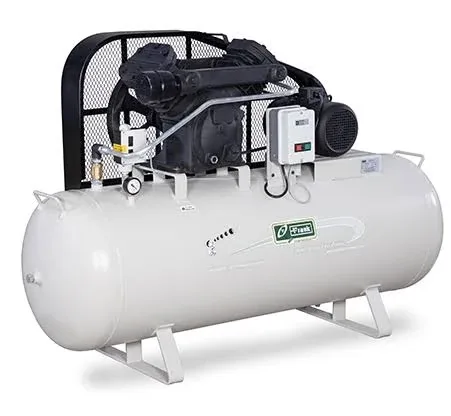

Manufacturer product images, shown to identify machines we sell, service and support. Brand names are trademarks of their owners.
Duty cycle: the critical selection point
Duty cycle is the share of time the compressor runs loaded. Many small air-cooled piston machines are designed for intermittent duty: they must stop or unload regularly so that the cylinders and valves can cool. A machine with a published flow rating is not necessarily designed to deliver that flow continuously.
Good practice for selecting an air-cooled piston compressor is:
- List the air users, their consumption in cfm or m³/min and their working pressure.
- Estimate how many run at the same time, and for how long.
- Add a margin for leaks and future tools.
- Compare the result with the compressor’s free air delivery (FAD), not its piston displacement, which is always higher.
- Check the manufacturer’s allowed duty cycle and starts per hour.
- Size the receiver so the compressor runs in reasonable cycles rather than starting and stopping constantly.
- Check the expected ambient temperature against the model’s limits.
If the plant needs air almost continuously, consider a larger piston machine running at part duty, two machines sharing the load, or a rotary screw compressor, which is designed for continuous running.
Indian summer ambient and dust
Air cooling depends on the temperature difference between the hot metal and the cooling air. In Telangana and Andhra Pradesh, summer shade temperatures reach the mid-40s °C, and the air inside a closed compressor corner or a tin-roofed workshop can be hotter still. Every degree of extra ambient temperature reduces the cooling margin.
Dust is the second enemy. Fine dust settles in the fins and on the cooler tubes, mixes with oil mist and forms an insulating layer. A compressor that ran cool when new can run much hotter after a dusty season without anyone noticing, until valves start to fail.
- Install the compressor where it can draw the coolest air available, preferably outside air through a shaded, louvred opening.
- Give hot air a way out: high-level exhaust openings or an exhaust fan so heated air does not recirculate to the flywheel fan.
- Keep clearance around the machine as the manufacturer specifies, especially on the flywheel side and around the coolers.
- Clean fins and cooler tubes according to the conditions; in dusty sites this can mean much more often than in a clean room.
- Keep the intake filter clean; a blocked filter raises the work per cubic metre of air.
A large room does not prove that ventilation is adequate. What matters is whether cool air reaches the fan and hot air leaves without coming back.
Symptoms, causes and checks
| Symptom | Likely causes | What to check |
|---|---|---|
| Cylinder head or discharge running very hot | Dirty fins, poor ventilation, leaking valves, excessive duty | Fin condition, room airflow, valve condition, loaded running time per hour |
| Slow pressure build-up | Worn rings, leaking valves, blocked intake filter, belt slip, air leaks | Pump-up test, filter, belt tension, leak survey |
| Oil in the air or high oil consumption | Worn rings or bores, wrong oil, overheating, overfilling | Oil grade and level, cylinder wear, crankcase breather |
| Carbon on valves | High temperature, unsuitable oil, overfilling | Temperature trend, oil type, duty cycle |
| Safety valve lifting | Pressure switch fault, unloader fault, wrong setting | Pressure switch, unloader, gauge accuracy |
| Excess water downstream | Hot discharge air, no aftercooler, drains not working | Aftercooler, receiver drain, dryer |
| Motor tripping on hot days | Overload from high duty, low voltage, poor motor cooling | Current draw, supply voltage, motor fan and room temperature |
Maintenance that keeps an air-cooled piston machine healthy
Follow the manufacturer’s intervals and adjust for the environment. A typical routine includes:
- Daily: check oil level, drain the receiver (or confirm the auto drain works), listen for unusual noise.
- Regularly: clean the intake filter, check belt tension and condition, clean fins and coolers, check for leaks.
- Periodically: change oil with the correct compressor grade, inspect and clean valves, check the safety valve, pressure switch and unloader.
- When performance falls: carry out a pump-up test, inspect rings and bores, and overhaul valves or the pump as needed.
Using genuine or proven-fit parts matters. Valves, rings and gaskets must match the model, so identify parts from the nameplate, model and serial number, or from the old part, before ordering.
Air treatment after an air-cooled compressor
Air leaving a piston compressor is hot and saturated. As it cools in the receiver and pipes, water condenses. For spray painting, instruments and food or pharma uses, add an aftercooler if the machine does not have one, a water separator, a correctly sized dryer and filters. Refrigerated dryers typically give a pressure dew point around +3 °C. Oil-lubricated machines also need coalescing filters where oil aerosol is unacceptable; oil-free piston compressors avoid oil in the air path but still need drying and particle filtration.
How Reddy Compressors helps
Reddy Compressors, at Srinilayam, 12-13-200, First Floor, Street No. 1, Tarnaka, Secunderabad 500017, has served industry since 2002 as an independent multi-brand compressor specialist. We are not an authorised dealer of any brand. We have tie-ups with all major and reputed brands.
- We sell new and used/refurbished air-cooled reciprocating compressors, single-stage and two-stage, oil-lubricated and oil-free, including ELGi, Ingersoll Rand, Chicago Pneumatic, Kirloskar and other makes.
- We size the machine and receiver from your tools and duty, and advise when a screw compressor would serve better.
- We service, repair and overhaul piston compressors: valves, rings, bearings, unloaders, pressure switches and coolers, with breakdown support and AMCs.
- We supply spare parts identified from the make, model, serial number, nameplate photo or old part, with fit confirmed before quoting.
- We supply tractor-mounted PTO-driven piston compressors, typically 100–140 cfm at 7–10 bar (101.5–145 psig), and rental compressors from our own fleet.
- We check compressor rooms for ventilation, intake location and heat recirculation.
More than 20 service engineers and technicians cover Telangana and Andhra Pradesh, and we supply machines and spares across India. Call +91 99590 60718 or +91 92468 88812.
What to send us
- Make, model, serial number and a nameplate photo of the existing compressor.
- List of air tools or users, their consumption and working pressure.
- Hours of operation per day and how long the compressor runs loaded.
- Photos of the installation, showing the room, openings and clearances.
- The problem: overheating, slow pressure build-up, oil carry-over, water or noise.
- For parts: the old part or a clear photo with any part number.
Frequently asked questions
Can an air-cooled piston compressor run continuously?
Some can, but many small air-cooled piston compressors are designed for intermittent duty and need regular off or unloaded periods to cool. Running them continuously at full load raises cylinder and valve temperatures, carbonises oil and shortens valve and ring life. Check the manufacturer’s duty cycle. For continuous demand, choose a larger machine running at part duty, two machines sharing the load, or a rotary screw compressor.
Why is my piston compressor overheating in summer?
Air cooling depends on the difference between the hot metal and the surrounding air. In summer that margin shrinks, and in a closed room hot exhaust air often recirculates to the flywheel fan. Dust on the fins, a blocked intake filter, leaking valves and higher demand make it worse. Improve ventilation, clean fins and coolers, check valves and reduce leaks before assuming the compressor is undersized.
What is the difference between air-cooled and water-cooled reciprocating compressors?
An air-cooled machine uses finned cylinders, finned coolers and a fan to reject heat directly to the room air. A water-cooled machine uses water jackets and shell-and-tube coolers connected to a cooling-water system. Air cooling is simpler and suits most small and medium machines. Water cooling handles bigger heat loads and continuous duty in large machines but needs water treatment and more maintenance.
How much space should be left around an air-cooled compressor?
Follow the clearances in the manufacturer’s installation manual, because they depend on the model and fan arrangement. As a principle, the flywheel fan must draw cool air freely, the coolers must not face a wall, and hot air must have a route out of the room without recirculating. Also leave enough access for belt changes, valve work and draining the receiver.
How do I know if my compressor valves are bad?
Common signs are slow pressure build-up, longer running times, higher discharge temperatures, a hot intercooler or head on one stage, unusual knocking or chattering and carbon at the discharge. A pump-up test, timing how long the compressor takes to fill the receiver to set pressure, helps confirm lost capacity. Inspect and clean or replace valves using parts matched to the exact model.
Is a two-stage piston compressor better than a single-stage one?
For working pressures above about 8 bar (116 psig) and for steadier demand, a two-stage machine is usually the better choice. Intercooling between stages lowers temperatures, reduces wear and generally improves energy use per cubic metre of air. For small, intermittent duties at around 7 bar (101.5 psig), a single-stage machine is often adequate and costs less to buy.
