Technology Comparison Centre

Capability State: ENGINEERING GUIDANCE / PROJECT-SPECIFIC FINAL SELECTION

There is no universally “best” compressor

There is only a technology that properly matches—or fails to match—the actual:

• Application
• Flow
• Pressure
• Air / Gas Condition
• Demand Profile
• Duty Cycle
• Operating Environment
• Control Requirement
• Reliability Requirement

and:

Lifecycle Objective.

Start with the job. then select the machine

A compressor can produce enough air at its discharge and still leave the production process short of pressure.

A larger machine can consume more energy without correcting the real problem.

A dryer can operate while moisture still reaches the process.

Storage can exist without providing useful buffering.

A technically sound machine can therefore perform poorly inside a badly designed system.

Application → requirement → system → technology → model

Not:

Brand → horsepower → price → purchase

The master equation

01 — define the air or gas demand

The authoritative compressor-selection guide begins with:

• Average Flow
• Peak Flow
• Simultaneity
• Future Growth

and:

Duration of Peaks.

Therefore:

Do not size by motor power first

02 — define pressure at the point of use

The selection guide requires:

Minimum point-of-use pressure

plus legitimate pressure losses through treatment and distribution.

This means:

Compressor discharge pressure ≠ required process pressure

03 — define air quality

The engineer to define:

• Particles
• Water

and:

• Oil
• requirements, together with any product-contact or regulatory consequences

Therefore air-quality requirements can change both:

Compressor technology

and:

Downstream treatment

04 — define duty & environment

The authoritative guide requires review of:

• Operating Hours
• Demand Variability
• Ambient Temperature
• Altitude
• Dust
• Humidity
• Cooling
• Voltage

and:

Available Space.

Technology that performs well in one environment may be inappropriate in another.

05 — define reliability before equipment selection

Ask:

What happens if the machine stops?

For some applications, loss of air is inconvenient.

For others, production stops.

06 — SELECT THE ARCHITECTURE—not JUST THE MACHINE

The controlled selection guide says architecture may include:

• Technology
• Number of Compressors
• Base / Trim / Standby Roles
• Storage
• Treatment
• Controls

and:

• Continuity Strategy
• This is a fundamental distinction

Machine selection is only one part of system design

07 — compare verified performance last

Once the requirement and architecture are established, compare:

• FAD
• Total Package Input Power
• Specific Power

and:

Performance at the Required Pressure.

Not:

Horsepower alone

Compressor technology families

The controlled technology hub divides compressor technologies broadly into:

Positive-displacement

Rotary Screw

Reciprocating

Scroll

Rotary Vane

Dynamic compression

Centrifugal

Axial

These technologies differ in capacity, duty, pressure, footprint, noise, maintenance, air quality and system behaviour.

08 — rotary screw compressors

Rotary screw technology is strongly associated with:

Regular / sustained industrial compressed-air duty

Typical selection considerations include:

• FAD
• Pressure
• Operating Hours
• Demand Profile
• Fixed-Speed vs VSD
• Oil-Injected vs Oil-Free
• Cooling
• Treatment
• Controls
• Maintenance Access

and:

Lifecycle Cost.

09 — when rotary screw deserves evaluation

Common application pathways include:

• Manufacturing
• CNC
• Automation
• Packaging
• Process Support
• Plant Utilities

and:

• Industrial Workshops
• These are screening pathways—not automatic selection rules

10 — rotary screw is not automatically better than reciprocating

The decision should not become:

Rotary = modern = good

Piston = old = bad

Technology should follow actual operating behaviour.

11 — reciprocating compressors

Reciprocating technology remains relevant where:

• Demand Is Intermittent
• Duty Cycle Supports Piston Operation
• Pressure Requirement Favors the Architecture
• Capital Priorities Differ

or:

Specialised Pressure Duty Exists.

12 — potential reciprocating application pathways

These can include:

• Workshops
• Garages
• Maintenance Facilities
• Intermittent Production
• Smaller Industrial Installations
• Receiver-Mounted Systems

and:

Specialised Pressure Applications.

13 — ROTARY SCREW vs RECIPROCATING

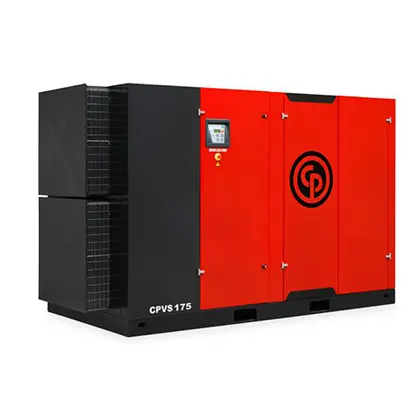

14 — FIXED SPEED vs VSD

The useful question is not:

“Is VSD better?”

It is:

“Does the demand profile justify speed control?”

A stable demand profile can favour fixed-speed architecture.

A sufficiently variable demand profile can make VSD valuable.

15 — VSD IS A CONTROL STRATEGY—not A SAVINGS GUARANTEE

VSD can help match output to changing demand where:

• Demand Varies
• Unloaded Running Is Significant
• Pressure Varies With Demand

or:

A Trim Compressor Is Required.

But no fixed saving percentage should be published without measured/project-specific evidence.

16 — fixed speed can be a good engineering answer

Fixed-speed machines can remain appropriate where:

• Demand Is Stable
• Loaded Utilisation Is High
• Storage Is Correct

and:

• Sequencing Is Well Designed
• “Fixed speed” should not be used as a synonym for “inefficient.”

17 — base / trim architecture

The trim machine is not automatically VSD; it may be another suitable controlled machine depending on the system.

18 — OIL-INJECTED vs OIL-FREE

This is not a quality ranking.

It is a:

Contamination-risk decision

Oil-free compression deserves evaluation where the process requires reduced risk of lubricant entering the compressed-air path.

But:

Oil-free compressor ≠ guaranteed point-of-use air quality

Treatment and distribution still matter.

19 — critical air technologies

Electronics / Semiconductor.

The key lesson is:

Process requirement first

Technology alone does not create regulatory or purity compliance.

20 — scroll compressors

Scroll technology can deserve evaluation for selected smaller-capacity clean-air duties.

But exact:

• Capacity
• Pressure
• Purity
• Duty

and:

• Maintenance
• remain manufacturer-specific

21 — rotary vane compressors

Rotary vane is another positive-displacement architecture.

Its suitability should be compared using:

• Flow
• Pressure
• Duty
• Air Quality
• Maintenance
• Existing Installed Base

and:

Current Support Availability.

22 — centrifugal compressors

The authoritative compressor technology hub positions centrifugal compression in larger-flow continuous-duty applications requiring different controls and system considerations.

23 — centrifugal ≠ large rotary screw

Centrifugal compression is dynamic.

The selection must therefore consider:

• Operating Point
• Performance Map
• Stable Range
• Surge / Choke
• Control Strategy
• Demand Profile

and:

Plant Integration.

Utility system architecture

That can include:

• Multiple Compressors
• Base / Trim
• Redundancy
• Treatment
• Storage
• Cooling
• Sequencing

and:

Distribution.

Start with the gas

That includes:

• Composition
• Suction Conditions
• Discharge Conditions
• Flow
• Materials
• Sealing
• Surge Protection

and:

Process Safety.

27 — CENTRIFUGAL vs AXIAL

Centrifugal

Gas moves outward through the impeller and pressure recovery system.

AXIAL

Gas moves primarily parallel to the shaft through successive rotor/stator blade rows.

Both are dynamic technologies.

Their application envelopes are different.

28 — portable compressors

Portable compressor selection introduces another engineering layer:

• Mobility
• Terrain
• Dust
• Temperature
• Fuel
• Hose Length
• Remote Operation

and:

• Project Logistics
• The next pillar will expand this in detail

29 — portable air should never be sized from CFM alone

The governing equation becomes:

Flow + pressure + application + operating conditions

30 — high-pressure / high-volume compressors

When conventional plant air is insufficient, the correct question is not:

“What is the biggest compressor?”

It is:

“What flow & pressure must reach the application?”

Downstream losses remain part of that answer.

Blower technology comparison

Industrial blowers generally move large air or gas volume at lower pressure rise than conventional compressed-air systems.

31 — roots / rotary-lobe blowers

Roots blowers belong to:

Positive-displacement blower technology

Key selection variables include:

• Flow
• Differential Pressure
• Speed
• System Resistance
• Overpressure Protection
• Pulsation

and:

Noise.

32 — screw blowers

Screw blowers use:

Internal compression

for low-pressure air duty.

Compare them at the actual:

• Volume Flow
• Differential Pressure
• Turndown

and:

Annual Duty Profile.

33 — centrifugal / turbo blowers

These are:

Dynamic blowers

Their selection depends heavily on:

• System Curve
• Performance Map
• Stable Operating Range
• Ambient Conditions
• Turndown

and:

Surge Protection.

34 — side-channel blowers

Side-channel/regenerative technology occupies a distinct:

Low-pressure / vacuum niche

Applications can include:

• Conveying
• Aeration
• Drying
• Holding

and:

• Vacuum Generation
• where the actual performance curve supports the duty

35 — blower selection must use the actual operating profile

The authoritative blower guide says technology should not be selected by brand or nominal flow. It requires process requirements, system dynamics and technology screening before supplier validation using current curves, sound data, motor/control details and maintenance information.

36 — blower comparison matrix

Vacuum technology comparison

Vacuum requires a different decision process.

The authoritative selector begins with:

Operating pressure + pumping speed at that pressure

not ultimate vacuum alone.

37 — process chemistry comes next

Vacuum selection must then identify:

• Vapours
• Condensables
• Corrosives
• Oxygen Enrichment
• Flammables
• Dust / Particles

and:

Cleaning Requirements.

38 — rotary vane vacuum

pathway:

• Oil-Lubricated
• Rough Vacuum
• Continuous Pumping
• Vapour-Handling Options

Main decision questions:

Is Oil Acceptable?

What Vapour Load?

How Is Exhaust Oil Mist Managed?

39 — dry claw vacuum

pathway:

• Dry Rough / Low Vacuum
• using a no-oil pumping chamber in verified designs

But:

Dry ≠ maintenance-free

40 — dry screw vacuum

pathway:

Dry Process Vacuum

where:

• Chemistry
• Containment
• Condensables
• Temperature
• Materials
• Purge
• Flushing

and:

• Hazardous-Area Requirements
• can dominate selection

41 — liquid ring vacuum

pathway:

• Wet
• Saturated

or:

• Contaminated Process Streams
• where liquid-ring architecture is appropriate

Performance depends on:

• Seal Liquid
• Liquid Temperature
• Vapour Pressure

and:

Recirculation Architecture.

42 — scroll vacuum

pathway:

• Clean Oil-Free Rough / Medium Vacuum
• for selected laboratory, analytical and industrial duties

Heavy:

• Condensables
• Corrosives

or:

• Particulates
• may require additional protection or another technology

43 — vacuum boosters

Boosters increase pumping speed in combination with a:

Backing pump

They must be engineered as part of:

A pump train

44 — central vacuum

Central vacuum is:

A SYSTEM ARCHITECTURE—not A PUMP TYPE

It can integrate multiple pumps, headers, buffers, separation, controls and distribution.

45 — vacuum selection order

The authoritative master provides the sequence:

Pressure & pumping speed first

• Process chemistry second
• Operating profile third
• LIFECYCLE COMPARISON FOURTH.
• Master technology map

THIS IS A SCREENING MATRIX—not A PRODUCT RECOMMENDATION

• 46 — compare pressure correctly
• Compressor

Point-of-use working pressure.

Blower

Inlet + outlet + differential pressure.

Vacuum

Absolute operating pressure.

Using the wrong pressure basis can invalidate the comparison.

47 — compare flow correctly

Compressors

Use verified delivered capacity / FAD where applicable.

Blowers

State actual, normal or standard conditions.

Vacuum

Use pumping speed at the relevant operating pressure.

48 — compare duty correctly

Do not compare two machines only at:

100% LOAD

Review where appropriate:

• Minimum Demand
• Average Demand
• Peak Demand
• Hours at Each Condition
• Start Frequency
• Cycles

and:

Seasonality.

49 — COMPARE SYSTEM PERFORMANCE—not PACKAGE PERFORMANCE ALONE

A machine interacts with:

• Cooling
• Treatment
• Storage
• Piping
• Filters
• Controls
• Headers

and:

Point-of-Use Equipment.

The authoritative compressor hub explicitly requires whole-system selection rather than machine-only selection.

50 — compare controls

Depending on technology:

• Load / Unload
• VSD
• Sequencing
• Base / Trim
• Lead / Lag
• Anti-Surge
• Vacuum Staging

or:

• System Master Control
• may matter
• The correct control strategy follows the technology

51 — VSD does not erase a bad technology match

A variable-speed drive cannot compensate for:

• Wrong Pressure Range
• Wrong Flow Range
• Wrong Medium
• Incorrect Cooling

or:

Poor Process Compatibility.

52 — compare air quality as a system property

An oil-free compressor can still supply unsuitable air if:

• Treatment Is Wrong
• Distribution Is Contaminated

or:

Point-of-Use Requirements Are Not Verified.

Conversely, a general plant-air system does not require specialist purity simply because higher purity technology exists.

53 — compare site conditions

Ask:

Indoor or Outdoor?

Hot or Cool?

Dusty?

High Altitude?

Remote?

Mobile?

Cooling Water Available?

Electrical Supply Available?

Fuel Required?

These variables can change the shortlist.

54 — compare maintenance

Technology selection should include:

• Consumables
• Service Skills
• Major Wear Components
• Service Access
• Spares Availability
• Expected Maintenance Windows

and:

Specialist Support Requirements.

55 — COMPARE RELIABILITY ARCHITECTURE—not JUST MACHINE REPUTATION

Ask:

What happens if one unit is unavailable?

Potential responses include:

• Standby Equipment
• Multiple Machines
• Base / Trim
• Stored Air
• Temporary Rental
• Maintenance Bypass

or:

Controlled Production Reduction.

56 — ONE LARGE MACHINE vs MULTIPLE MACHINES

Neither architecture is universally superior.

Multiple machines can provide:

• Staging
• Redundancy
• Maintenance Flexibility

but also introduce:

• Controls
• Coordination
• More Components

and:

Additional Maintenance.

57 — future growth should be justified

Do not automatically add:

20%

30%

or another generic capacity margin.

Expansion allowance should be linked to credible:

• Production Plans
• New Equipment
• Additional Shifts

or:

Known Project Growth.

58 — oversizing can be a technology problem

An oversized compressor may spend excessive time:

• Unloaded
• Cycling

or:

• Outside Its Efficient Operating Range
• A safety margin needs an engineering reason

59 — pressure should not hide system defects

If the process lacks pressure, investigate:

• Piping
• Filters
• Dryers
• Regulators
• Leaks
• Peak Demand

and:

• Distribution Restrictions
• before automatically increasing compressor discharge pressure

60 — storage does not create continuous capacity

Receivers and vacuum buffers can support:

• Peaks
• Control

and:

• Stability
• They cannot permanently compensate for inadequate average machine capacity

61 — technology comparison must include existing assets

The Compressor Finder requires review of existing:

• Compressors
• Dryers
• Receivers
• Piping
• Pressure
• Measured Flow
• Leaks
• Controls

and:

• Failure History
• A plant's existing assets may change the correct solution

62 — replacement is not automatically like-for-like

A machine installed years ago may no longer reflect:

• Current Production
• Current Shift Pattern
• Leakage
• Pressure Drop
• New Equipment

or:

• Air-Quality Requirements
• Measure before replacement

63 — the correct answer may be “do not buy a new compressor yet”

Possible alternatives can include:

• Repair
• Overhaul
• Leak Repair
• Piping Correction
• Control Improvement
• Storage Correction
• Sequencing

or:

• Temporary Rental
• where technically justified

64 — COMPARE LIFECYCLE—not ONLY PURCHASE PRICE

Lifecycle may include:

• Capital
• Energy / Fuel
• Water
• Oil
• Filters
• Maintenance
• Treatment
• Cooling
• Spares
• Service
• Downtime Risk

and:

Replacement Strategy.

65 — specific power requires like-for-like comparison

A valid compressed-air performance comparison requires:

• Same / Comparable Pressure
• Verified FAD
• Total Package Input

and:

• Clearly Defined Test Conditions
• Never compare isolated marketing values

66 — blower performance requires the system curve

Blower-system selection should use:

Actual System Resistance

because piping, diffusers, filters, valves and process backpressure determine the operating point.

67 — vacuum performance requires process chemistry

A vacuum pump can meet pressure and pumping-speed requirements and still be unsuitable because of:

• Condensation
• Corrosion
• Flammability
• Particles
• Vapours

or:

Material Compatibility.

68 — process-gas compression has its own hard boundary

Where the medium is not ordinary atmospheric air:

Gas composition becomes part of the machine specification

Process Safety.

69 — commercial availability & technical suitability are two different gates

A technology can be:

Technically suitable but not currently available

Or:

Commercially available but technically wrong for the duty

Both gates must pass.

70 — technology knowledge ≠ OEM authorization

Publishing technical information about:

• Centrifugal
• Axial
• Blowers
• Vacuum

or:

Process Gas

does not prove:

• Dealership
• OEM Authorization
• Factory Training
• Stock

or:

In-House Overhaul Capability.

71 — reddy's role is requirement-led

The intended differentiation is not ownership of every compressor technology; it is connecting the customer's requirement with a multi-brand, lifecycle-aware pathway while maintaining evidence boundaries.

73 — technology comparison centre interactive tool

Commercial Preference.

74 — the tool output should be a shortlist

The authoritative Compressor Finder says the output should return suitable architecture types together with:

Assumptions

and:

Items Still Requiring Verification.

It should also:

• Show Why the Technology Was Suggested
• Flag Missing Inputs

and:

Avoid Returning a Final Model Without Engineering Review.

“Buy this machine.”

before:

• Exact Duty
• Supplier Curve
• Model Data
• Site Conditions

and:

• Commercial Availability
• are confirmed

76 — customer data to request

For a technology-comparison enquiry:

Application / Process

Compressed Air, Blower Air, Process Gas or Vacuum?

Minimum Flow

Average Flow

Peak Flow

Pressure at Point of Use

Vacuum Pressure if Applicable

Air / Gas Quality

Operating Hours

Duty Cycle

Demand Variation

Ambient Temperature

Altitude

Dust / Outdoor Conditions

Electrical Supply

Fuel Requirement

Cooling Availability

Process Gas Composition

Condensables

Particles / Liquids

Oil Restrictions

Noise Requirement

Existing Equipment

Measured Flow

Existing Pressure

Known Leaks

Storage

Treatment

Controls

Failure History

Required Redundancy

Future Expansion

77 — master technology selection gate

Application defined?

If no — stop.

Flow defined?

If no — measure or calculate.

Pressure / vacuum defined?

If no — establish it.

Quality defined?

If no — define the process requirement.

Demand profile known?

If no — log or estimate transparently.

Duty known?

If no — determine operating pattern.

Site conditions known?

If no — collect them.

Failure consequence known?

If no — determine criticality.

System losses known?

If no — inspect them.

Current supplier data available?

If no — verify before final selection.

79 — final comparison philosophy

A proper technology comparison should answer:

What does the process require?

What technologies can physically meet it?

Which of those remain suitable across the full duty profile?

Which can be integrated into the existing system?

Which have verified current model data?

Which have an appropriate lifecycle & support path?

That is the correct sequence.

Technology comparison in one line

The right technology is not the machine with the strongest marketing claim

It is the architecture that meets the actual flow, pressure, quality, duty, process, site & reliability requirement across its real operating life

And can prove that performance with current data

Closing

TECHNOLOGY IS THE RESULT OF THE ENGINEERING PROCESS—not THE START OF IT

The controlled compressor-selection master provides the sequence directly: define demand, point-of-use pressure, air quality, duty/environment and architecture, then compare verified performance using FAD, total package input power, specific power and performance at the required pressure.

The technology hub reinforces that compressor selection must include the full system, including air treatment, storage, piping, controls and end use, while minimum/average/peak demand, ambient conditions and redundancy must also be considered.

For blower duty, the framework changes appropriately: medium, flow, differential pressure or vacuum, system dynamics, turndown, control mode and current supplier curves become central.

For vacuum, operating pressure and pumping speed come first, followed by process chemistry, duty profile and lifecycle requirements; the selector provides candidate technologies only and final selection still requires current supplier curves and media compatibility review.

And throughout the platform, the evidence boundary remains fixed: Reddy's role is to connect the requirement with a multi-brand, lifecycle-aware pathway without converting manufacturer claims, unverified commercial availability or undocumented project outcomes into unsupported statements.

Reddy compressors

• Compressed air. process air. blowers. vacuum
• Engineered from the duty
• Define the application
• Define flow
• Define pressure or vacuum
• Define quality
• Map demand
• Define duty
• Understand the site
• Understand the process media
• Include the complete system
• Plan controls
• Plan redundancy
• Compare lifecycle
• Shortlist technologies
• Verify the exact model
• Claim only documented performance
• Primary CTA

Find the Right Compressor / Blower / Vacuum Technology

Secondary CTAs

Compare Compressor Technologies

Compare Rotary Screw vs Reciprocating

Compare Fixed Speed vs VSD

Compare Oil-Injected vs Oil-Free

Compare Blower Technologies

Compare Vacuum Technologies

Request Application Engineering
